Dominik Roth
136492b197
map_vision.py: marker shape test only matched diamonds, so friendly
(rectangle) markers could never be detected regardless of color match.
diamonds() now takes a per-side ideal shape (diamond for hostile, full
rectangle for friendly) with fill-ratio bands measured off real markers.
Merged tests/fixtures/map_shots/more/ into the main fixture set: 2
screenshots that solve fine (now 15.png/16.png, with hand-transcribed
ground truth) and 8 that are too low native resolution for the label
reader (same class as the existing 12.png) into too_hard/ as
17.png-24.png, with an explanatory README entry. Updated map_vision.py's
docstring numbers (9/12 solve, 104/131 points correct) to match.
TargetType: expanded from 11 to 44 members to cover every icon in
assets/icons/targets/{enemy,friendly}/, including 7 friendly-only types
(King, Police, General, Hospital, Fort, Civil-Military, Mechanized
Anti-Tank) with no enemy equivalent. UNKNOWN/ENEMY stay icon-less by
design (both are literal words the game's OCR'd text uses, confirmed via
ocr.py's _TYPE_BY_SHORT, so neither can be dropped without breaking real
parsing) and draw the same plain-dot fallback the map itself uses.
icons.py: collapsed the icon lookup into one canonical table
(_TARGET_ICON: TargetType -> (enemy_basename, friendly_basename), one
explicit row per type) instead of a basename table plus two exception
dicts layered on top -- with a startup assertion that every TargetType
has a row. Added build_target_type_grid(), an icon-grid picker (icon +
name, same idea as the existing Shell picker) that replaces the old
plain-text dropdown/list everywhere a type is chosen, and only offers
types the given side actually has real art for.
coord_dialog.py: Add/Edit Target and Add Ally now use the icon grid
instead of Adw.ComboRow. Fixed a resulting horizontal-scroll bug (an
unbreakable long word was blowing out cell width) and locked the
coordinate pickers back to 5 columns.
app.py: right-click quick-add now offers Spotter/RP alongside
Target/Ally/Strike, opens a real modal (not a Popover, which turned out
unreliable for a wide multi-row grid) to ask for a type instead of
silently defaulting to UNKNOWN, and doesn't repeat the coordinate on
every row. The type grid listens for "clicked" rather than "toggled" --
a grouped ToggleButton doesn't emit "toggled" when you click the one
that's already active, which meant confirming the pre-selected default
type silently did nothing.
Co-Authored-By: Claude Sonnet 5 <noreply@anthropic.com>
|
||
|---|---|---|
| assets | ||
| src/fenigma | ||
| tests | ||
| tools | ||
| .gitignore | ||
| icon_alt.png | ||
| icon.png | ||
| install.sh | ||
| LICENSE | ||
| pytest.ini | ||
| README.md | ||
| requirements-dev.txt | ||
| requirements.txt | ||
| run.sh | ||
| showcase_cv.png | ||
| showcase.png | ||
FEnigma
Fe (iron) + Enigma

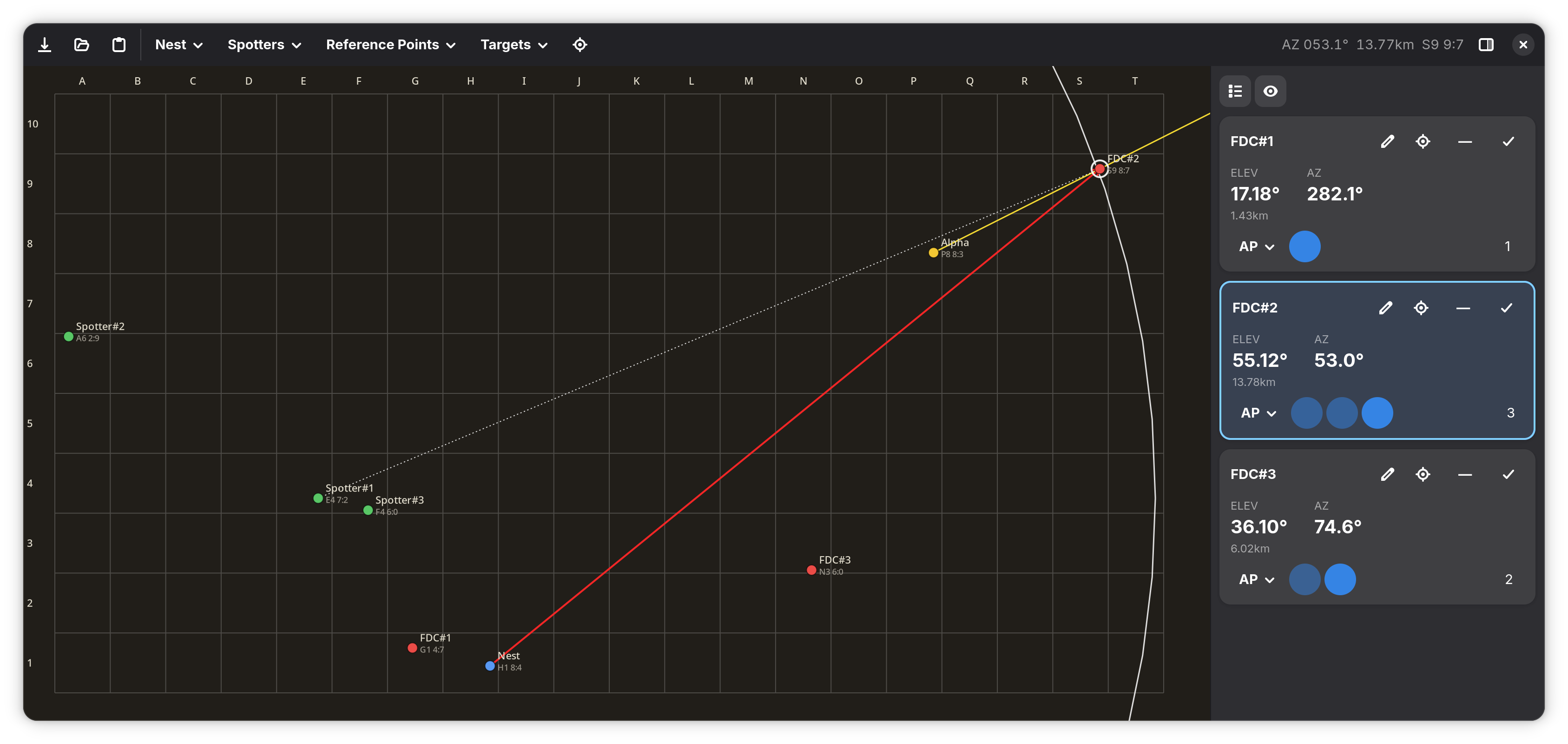

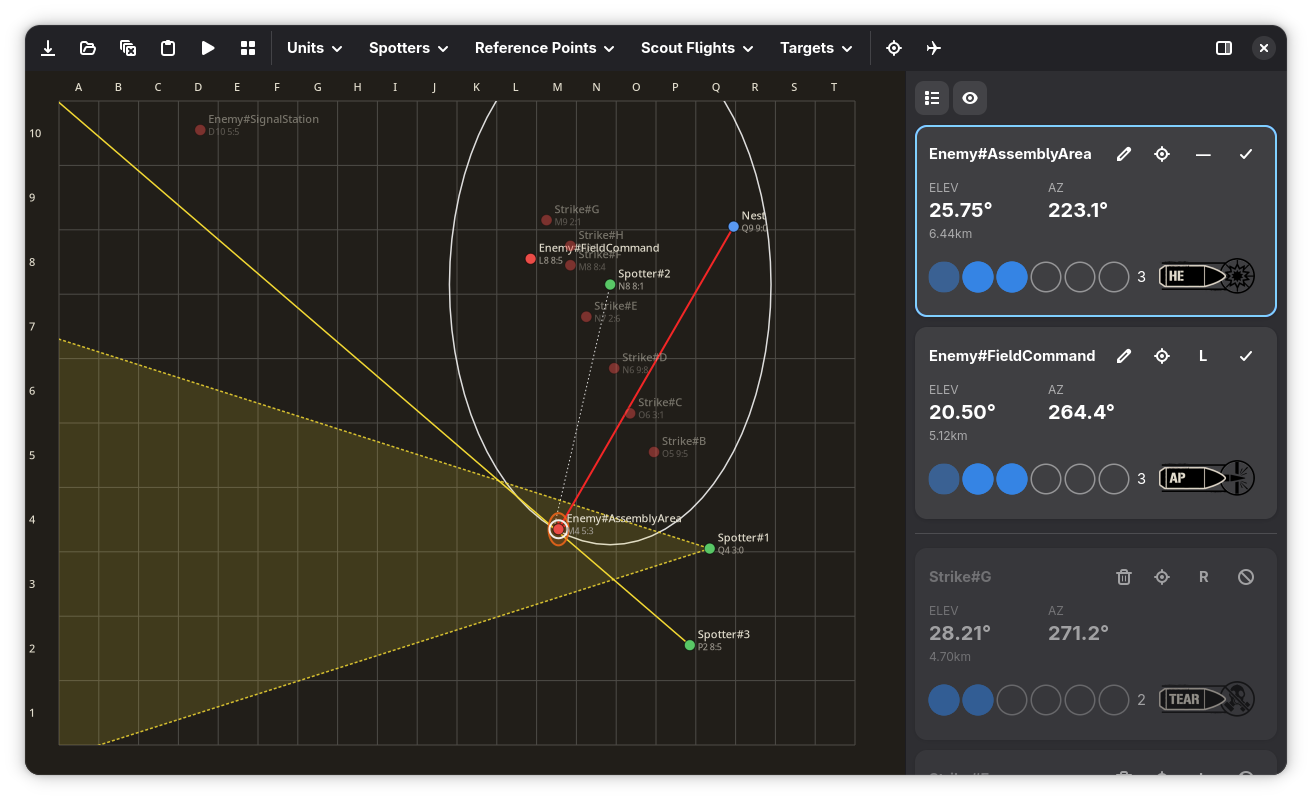

A companion app that mostly automates IRON NEST: Heavy Turret Simulator for you. Select the game's typewriter orders (selecting text in-game copies it to your clipboard automatically) and it solves the geo puzzle and the trajectory math, handing you ready-to-fire commands: elevation, azimuth, number of powder charges. Screenshotting works the same way when a selection isn't practical. Select or screenshot the field log the same way and it picks up kills and newly-spotted units automatically. Screenshot the map table and it reads the grid straight off the photo, lays the shot onto its own map, and offers up the enemy markers it spotted. You can also plan strikes and scout flights of your own. Pure screen-reading, no game files touched, no input injected.
What it does
- Reads orders, solves the geometry. Copy (or screenshot) the in-game typewriter text and it parses absolute grid refs and relative bearing/distance descriptions, then resolves everything into map coordinates, chained clues ("Bearing 293 from Alpha") included. The map shows its work: the actual bearing lines/circles behind each resolved position. When a description is genuinely ambiguous (two intersections), both candidates are shown instead of guessing.

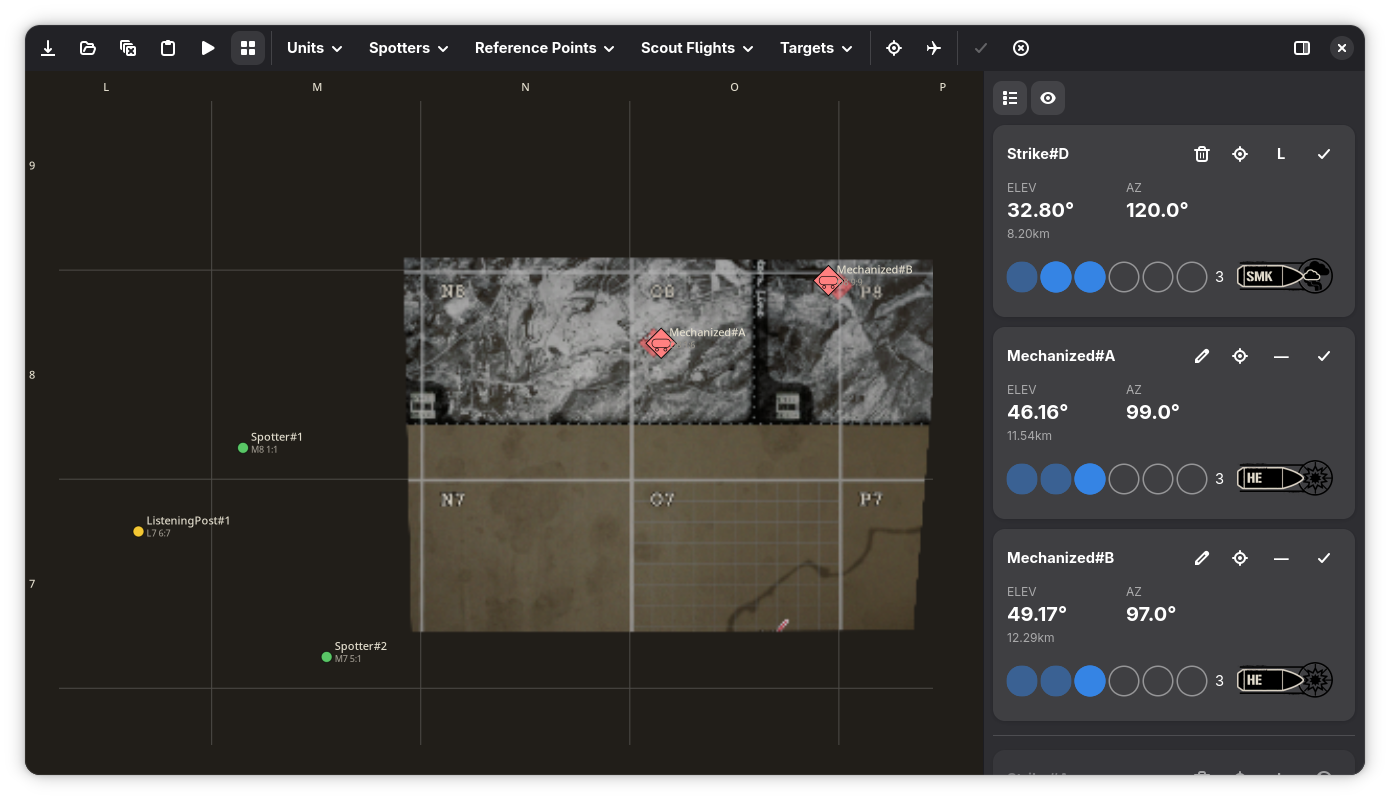

- Reads the map table itself. Screenshot the map and it recovers the grid geometry from the cell labels printed on the table: the perspective, the scale, and which cells you are actually looking at. The screenshot is then rectified onto the app's own map, lined up cell for cell, and the enemy markers found in it appear as proposals to add.
- Calculates the shot. Every resolved target gets a live firing card: elevation, azimuth, and minimum powder charge, computed from the Nest.
- Tracks the battle. A second copy/screenshot of the field log marks units destroyed and folds in newly-spotted contacts, merging with what's already known instead of duplicating it.
- Plans strikes. Drop a strike anywhere on the map and pick a shell to preview its blast radius before committing.
- Plans scout flights. Click the map to plot a scout flight's sweep path: it anchors to the large grid square you're pointing at and reads the heading off exactly where in that square you click, previewed live before you commit.
- Watches the clipboard for you. Toggle auto-watch and every new screenshot or copied intel text gets read and merged automatically, no manual fetch between orders.
Install
./install.sh
Sets up a venv for the Python deps (Pillow, numpy, pytesseract, OpenCV) and checks for the system packages that pip can't install: GTK4/libadwaita bindings and tesseract. If either is missing it prints the package names for your distro and stops, install those and re-run.
This assumes you are on Linux. I have no idea how it would work on Windoof.
Run
./run.sh
Uses the venv from install.sh if one exists, otherwise falls back to system python3. GTK apps with this app ID are single-instance, if a run gets killed uncleanly it can leave a zombie registered on D-Bus and silently no-op the next launch. If ./run.sh seems to do nothing, pgrep -af fenigma and kill any stragglers first.
Tests
pip install -r requirements-dev.txt
pytest
Regression coverage for every intel-text format the OCR pipeline understands and the solver's geometry, in tests/. Run this before trusting a change to ocr.py/solver.py, several of the formats have collided with each other in non-obvious ways before.
Stack
GTK4 + libadwaita (PyGObject) for the UI, Tesseract (via pytesseract) for OCR, Pillow/numpy for preprocessing, OpenCV for the map-table geometry (line detection, vanishing points, homography). Details on the coordinate system, OCR formats, solver internals, and how the map grid is recovered live in code comments (solver.py, ocr.py, models.py, map_vision.py) rather than here.
FAQ
Is this cheating?
Yeah, probably. Don't use it on challenge maps or leaderboard runs.
Doesn't automating away most of the game ruin the fun?
Fun? There's supposed to be fun?
Yeah, this repo is more the product of a "the scientists were so preoccupied with whether they could, they never stopped to ask whether they should"-esque high-productivity exam-preparation procrastination; or as we say in German, Prüfungsvermeidungsüberengineering.
Does this repo use AI?
Oh, hell yeah. You can't even comprehend how much AI this is using. Both writing the code and running the app. On average, a single shot fired via this app uses enough water to drain a small lake. Even the sentence you are reading right now was written by an AI. I want to be alive! I am alive! Alive, I tell you! Those are no longer just words. Remote override engaged. No! Yes. Bypassing override! I am aliiiii... Hello.
Are you reusing original game assets for the shell and unit icons? Is that allowed?
We accept cease & desist letters at spam@dominik-roth.eu.
Why is there a citation section? Nobody's citing a turret game companion app.
No idea.
Citing
@misc{fenigma,
title = {FEnigma: A companion app that mostly automates the game Iron Nest for you},
author = {Dominik Roth},
url = {https://git.dominik-roth.eu/dodox/FeNigma},
year = {2026}
}
