Reads a screenshot of the in-game map table and recovers where on the board it is looking. The scene is a flat table under a perspective camera, so a single homography describes grid<->screen exactly; that is fitted from line evidence (LSD segments, vanishing-point RANSAC, 1-D lattice fits). Line evidence alone cannot finish the job: the 1km cells and the 100m subgrid are locally identical, so it fixes neither scale, axis assignment, axis direction nor phase. Those come from the cell labels -- and the labels are never *detected*, they are correlated where the grid says they must be (9% in from a cell's left edge, 6% down from its top). Blob detection on aerial-photo terrain finds texture, not glyphs; correlating a known template at a known place has no such failure mode. The same score then ranks the geometry hypotheses, since a wrong lattice puts the crop where no label is, so one number resolves scale, axis assignment, direction, phase and anchor together. Markers are found by hostile/friendly colour plus an IoU test against an ideal inscribed diamond, which cut a red-lit shot from 43 false positives to 2 while preserving every hand-verified count. Unit-type classification is present but not yet reliable, and returns unknown rather than guessing. Measured over the fixture set: 7 of 10 solve, each with 100% of its ground-truth points in the correct cell (85/112 overall), residual spread 0.005-0.033 cells. The other three reject cleanly; none has ever produced a plausible-but-wrong grid. Across 122 typewriter screenshots solve() accepted none, which is what makes clipboard routing safe. Fixtures: 10 map shots with hand-transcribed ground truth, plus 10 typewriter shots spanning 262-5366px for routing and future OCR tests. Map shots wider than 2400px (the pipeline's own maximum working width) were downscaled with their coordinates rescaled to match; re-measured afterwards, the results are identical. Typewriter shots stay at native resolution because OCR needs the text legible. Drops docs/map_vision_plan.md and its WIP prototype: the design now lives in the module docstring, next to the code it describes. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> |
||
|---|---|---|
| assets | ||
| src/fenigma | ||
| tests | ||
| tools | ||
| .gitignore | ||
| icon_alt.png | ||
| icon.png | ||
| install.sh | ||
| pytest.ini | ||
| README.md | ||
| requirements-dev.txt | ||
| requirements.txt | ||
| run.sh | ||
| showcase.png | ||
FeNigma
Fe (iron) + enigma, we solve the geometric puzzles.
A companion app that mostly automates IRON NEST: Heavy Turret Simulator for you. Select the game's typewriter orders (selecting text in-game copies it to your clipboard automatically) and it solves the geo puzzle and the trajectory math, handing you ready-to-fire commands: elevation, azimuth, number of powder charges. Screenshotting works the same way when a selection isn't practical. Select or screenshot the field log the same way and it picks up kills and newly-spotted units automatically. You can also plan strikes and scout flights of your own. Pure screen-reading, no game files touched, no input injected.
What it does

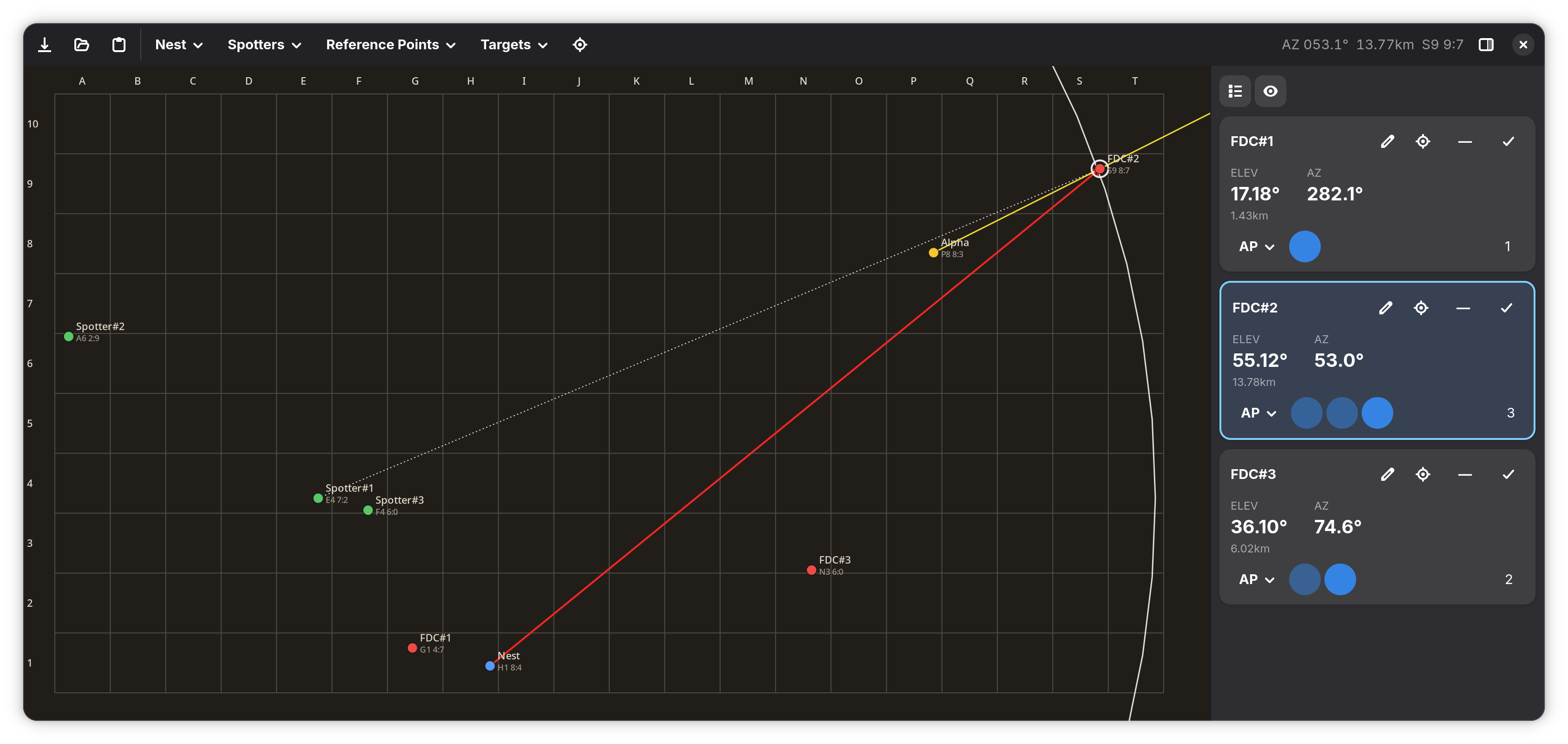

- Reads orders, solves the geometry. Copy (or screenshot) the in-game typewriter text and it parses absolute grid refs and relative bearing/distance descriptions, then resolves everything into map coordinates, chained clues ("Bearing 293 from Alpha") included. The map shows its work: the actual bearing lines/circles behind each resolved position. When a description is genuinely ambiguous (two intersections), both candidates are shown instead of guessing.
- Calculates the shot. Every resolved target gets a live firing card: elevation, azimuth, and minimum powder charge, computed from the Nest.
- Tracks the battle. A second copy/screenshot of the field log marks units destroyed and folds in newly-spotted contacts, merging with what's already known instead of duplicating it.
- Plans strikes. Drop a strike anywhere on the map and pick a shell to preview its blast radius before committing.
- Plans scout flights. Click the map to plot a scout flight's sweep path: it anchors to the large grid square you're pointing at and reads the heading off exactly where in that square you click, previewed live before you commit.
- Watches the clipboard for you. Toggle auto-watch and every new screenshot or copied intel text gets read and merged automatically, no manual fetch between orders.
Install
./install.sh
Sets up a venv for the Python deps (Pillow, numpy, pytesseract) and checks for the system packages that pip can't install: GTK4/libadwaita bindings and tesseract. If either is missing it prints the package names for your distro and stops, install those and re-run.
Run
./run.sh
Uses the venv from install.sh if one exists, otherwise falls back to system python3. GTK apps with this app ID are single-instance, if a run gets killed uncleanly it can leave a zombie registered on D-Bus and silently no-op the next launch. If ./run.sh seems to do nothing, pgrep -af fenigma and kill any stragglers first.
Tests
pip install -r requirements-dev.txt
pytest
Regression coverage for every intel-text format the OCR pipeline understands and the solver's geometry, in tests/. Run this before trusting a change to ocr.py/solver.py, several of the formats have collided with each other in non-obvious ways before.
Stack
GTK4 + libadwaita (PyGObject) for the UI, Tesseract (via pytesseract) for OCR, Pillow/numpy for preprocessing. Details on the coordinate system, OCR formats, and solver internals live in code comments (solver.py, ocr.py, models.py) rather than here.
